High-quality linings

Specialised materials, processing and welding know-how

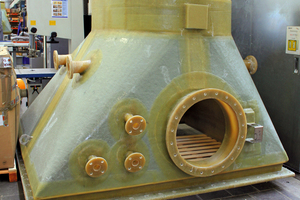

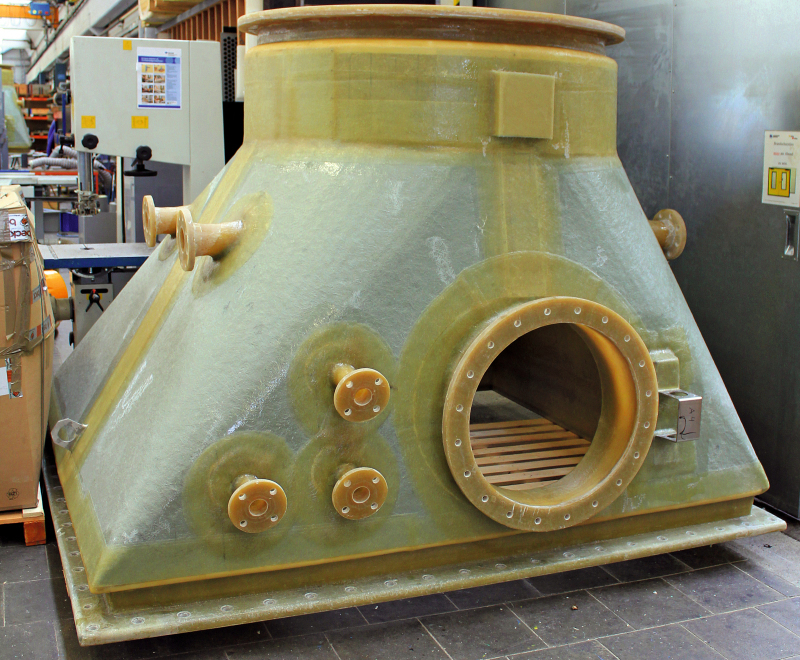

1 Auch das Übergangsstück zur Quenche muss durch eine Auskleidung geschützt werden • The transition element leading into the quench also requires protection by a lining Quelle/Source: Klaus Vollrath
1 Auch das Übergangsstück zur Quenche muss durch eine Auskleidung geschützt werden • The transition element leading into the quench also requires protection by a lining
Quelle/Source: Klaus Vollrath
2 Eine innere Auskleidung schützt das GFK der Quenche vor dem Angriff durch Gase und heiße, chemisch aggressive sowie korrosive wässrige Lösungen • An inner lining protects the GRP of the quench against attack by gases, and against hot, chemically aggressive and corrosive aqueous solution Quelle/Source: Klaus Vollrath
2 Eine innere Auskleidung schützt das GFK der Quenche vor dem Angriff durch Gase und heiße, chemisch aggressive sowie korrosive wässrige Lösungen • An inner lining protects the GRP of the quench against attack by gases, and against hot, chemically aggressive and corrosive aqueous solution
Quelle/Source: Klaus Vollrath

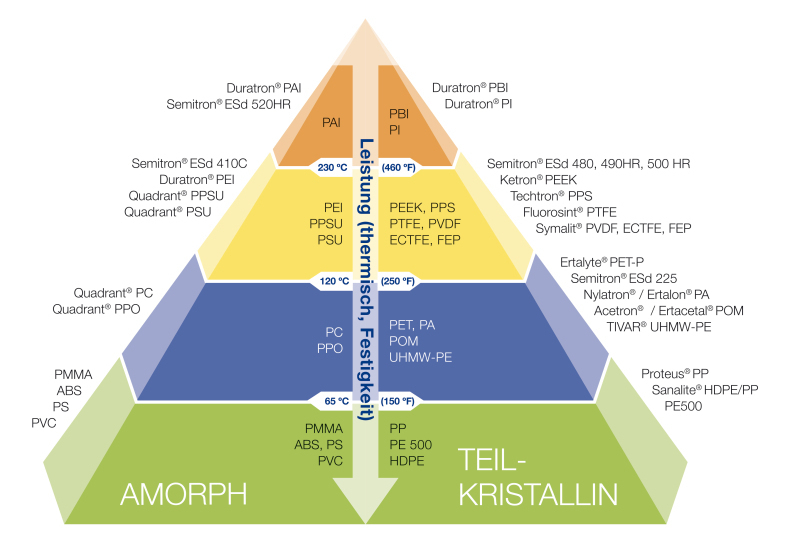

3 Symalit 1000 PFA ist ein technischer Kunststoff der Quadrant EPP AG in Lenzburg • Symalit 1000 PFA is a commercial plastic produced by Quadrant EPP AG in Lenzburg Quelle/Source: Quadrant EPP
3 Symalit 1000 PFA ist ein technischer Kunststoff der Quadrant EPP AG in Lenzburg • Symalit 1000 PFA is a commercial plastic produced by Quadrant EPP AG in Lenzburg
Quelle/Source: Quadrant EPP

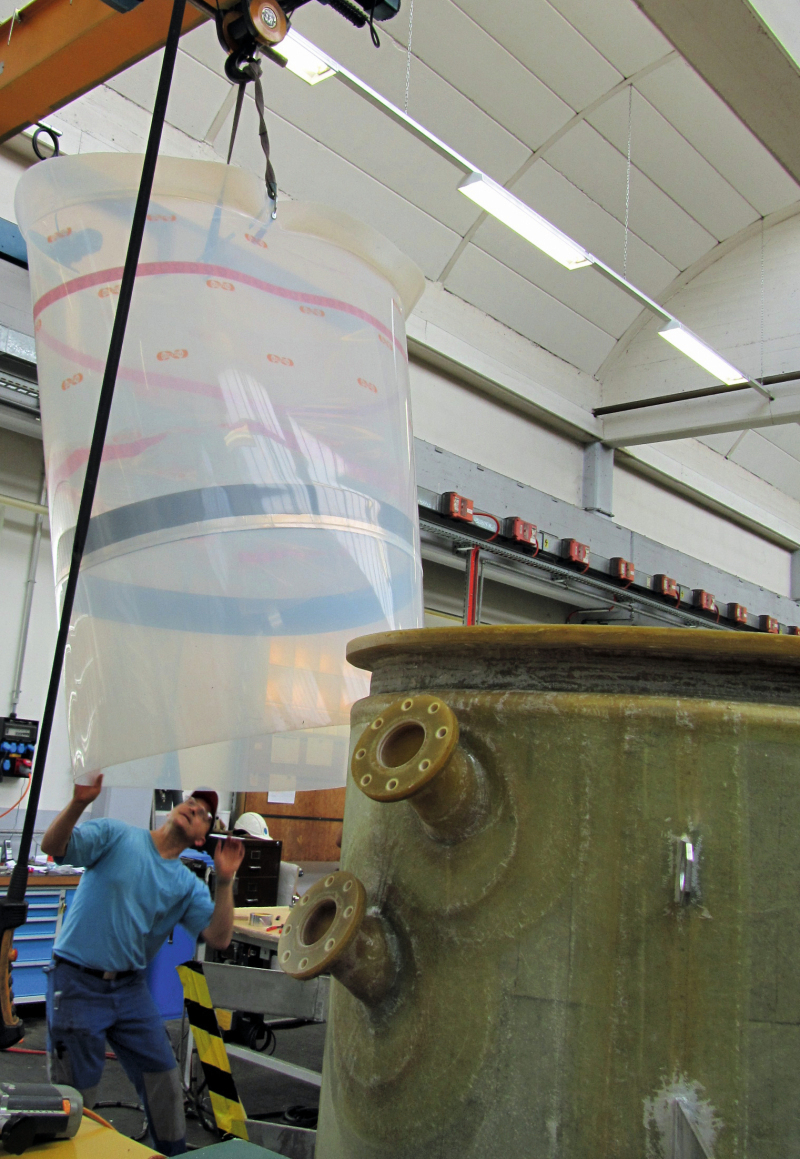

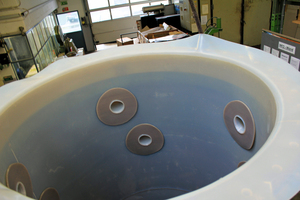

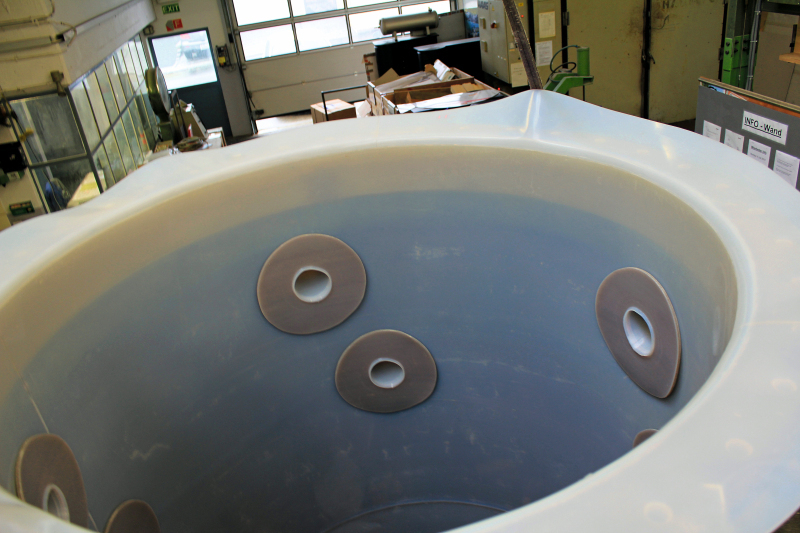

4 Die Auskleidung wird als „loses Hemd“ vorkonfektioniert und dann in den Grundkörper eingesetzt • The lining is prefabricated in the form of a "loose-fitting shirt" and then inserted into the body Quelle/Source: Angenstein
4 Die Auskleidung wird als „loses Hemd“ vorkonfektioniert und dann in den Grundkörper eingesetzt • The lining is prefabricated in the form of a "loose-fitting shirt" and then inserted into the body
Quelle/Source: Angenstein

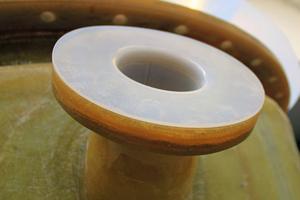

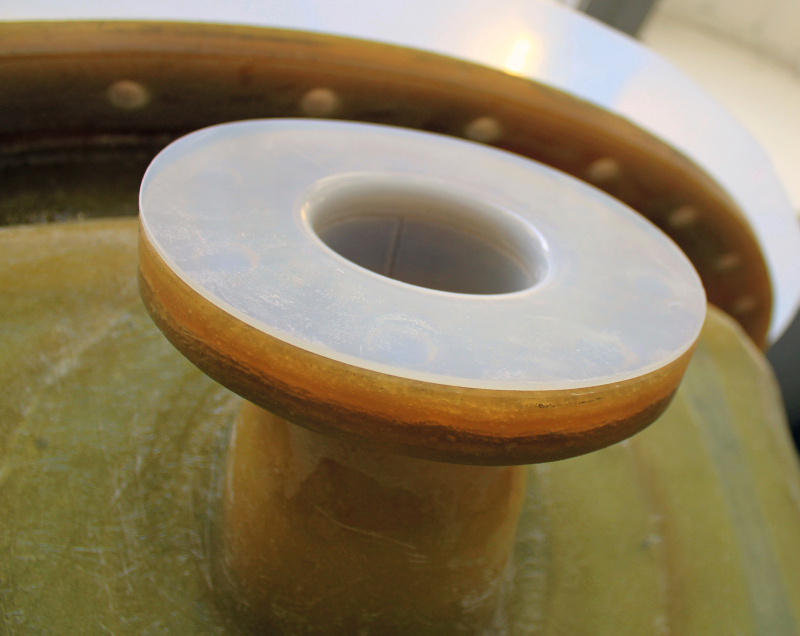

5 Jeder Stutzen erhält seinerseits ein Auskleidungselement • A lining element is also fitted to every socket Quelle/Source: Klaus Vollrath
5 Jeder Stutzen erhält seinerseits ein Auskleidungselement • A lining element is also fitted to every socket
Quelle/Source: Klaus Vollrath

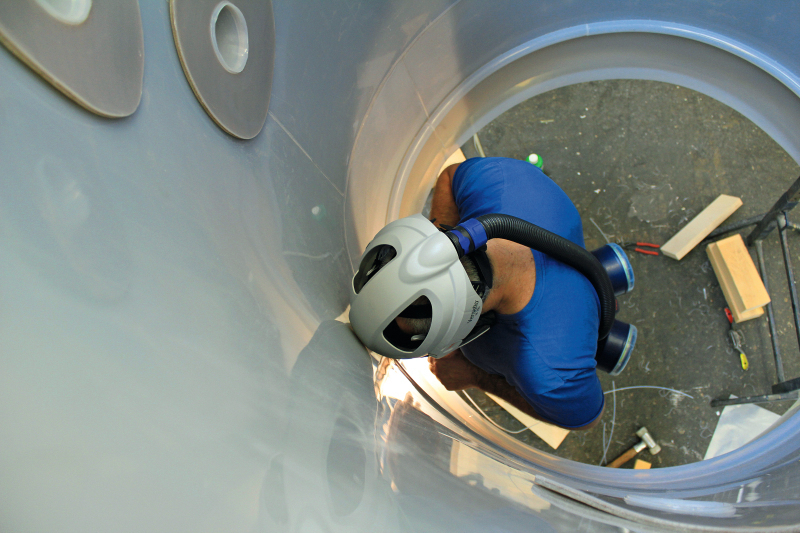

6 Das Schweißen erfolgt unter Vollschutz. Unten der elastische Ring, der die Auskleidung andrückt, oben zwei Stabilisierungskragen an den Stutzen • Welding is performed wearing a full-body welding suit. The flexible ring, which thrusts the lining against the wall, is seen at bottom, and two stabilisation collars on the sockets at top Quelle/Source: Klaus Vollrath
6 Das Schweißen erfolgt unter Vollschutz. Unten der elastische Ring, der die Auskleidung andrückt, oben zwei Stabilisierungskragen an den Stutzen • Welding is performed wearing a full-body welding suit. The flexible ring, which thrusts the lining against the wall, is seen at bottom, and two stabilisation collars on the sockets at top
Quelle/Source: Klaus Vollrath

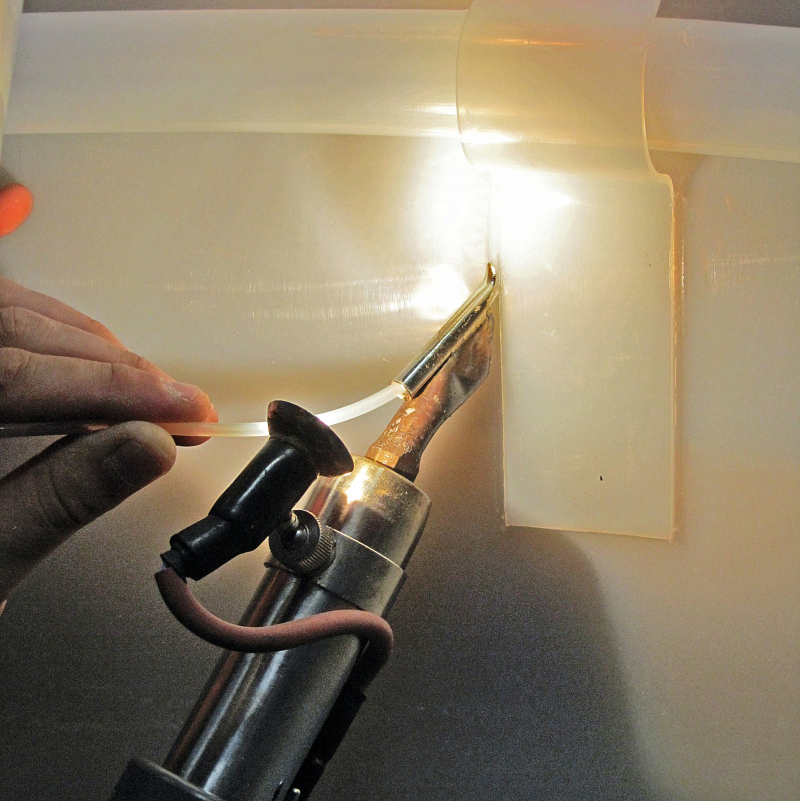

7 Das Schweißen von PFA erfordert den Einsatz erfahrener und speziell auf die Besonderheiten des Materials und seiner Verarbeitungseigenschaften hin geschulter Kunststoffschweißer • Welding of PFA necessitates the deployment of experienced plastics welders specially trained in the unusual features of this material and its working and welding characteristics Quelle/Source: Angenstein
7 Das Schweißen von PFA erfordert den Einsatz erfahrener und speziell auf die Besonderheiten des Materials und seiner Verarbeitungseigenschaften hin geschulter Kunststoffschweißer • Welding of PFA necessitates the deployment of experienced plastics welders specially trained in the unusual features of this material and its working and welding characteristics
Quelle/Source: Angenstein

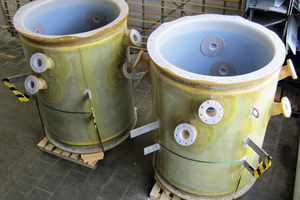

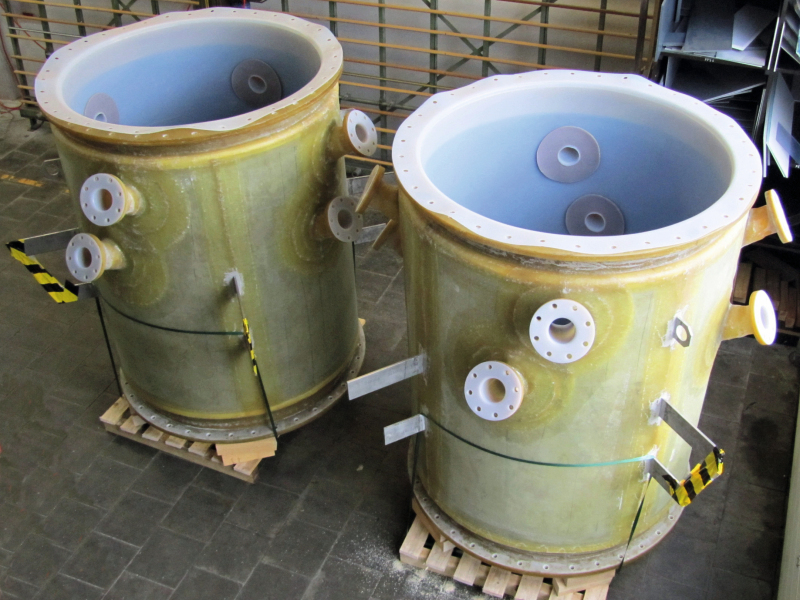

Zwei fertig ausgekleidete Quenche-Grundkörper für die Rauchgasbehandlung in einer Abfallverwertungsanlage • Two ready-lined quench bodies for the flue-gas treatment system in a waste-incineration plant Quelle/Source: Angenstein
Zwei fertig ausgekleidete Quenche-Grundkörper für die Rauchgasbehandlung in einer Abfallverwertungsanlage • Two ready-lined quench bodies for the flue-gas treatment system in a waste-incineration plant
Quelle/Source: Angenstein

Summary: For cost reasons, chemicals, pharmaceuticals, biochemicals and waste-gas treatment equipment is frequently fabricated from glass-fibre-reinforced plastics (GRPs). Where they handle aggressive chemicals, they may also need extra protection in the form of especially resistant linings. This article examines a Swiss specialist’s approach to such a task, focusing on the example of a flue-gas quench for a waste-incineration plant.

Since private consumers generally have neither sufficient knowledge nor the necessary discipline to keep hazardous and/or environmentally harmful substances out of the waste flow, a chaotic mix, containing virtually all possible ingredients, is what lands in the incineration furnaces. “Cleaning of waste gases from waste-incineration plants is a particularly demanding task, because you find here virtually all the conceivable hazardous and toxic substances”, comments Serge Naegelin, Head of Sales, Technology in Plastics - Dampers/Butterfly Valves, at Angenstein AG, of Aesch/Switzerland. Because...
