The new dry rotary vane vacuum pumps of the DVS series from Atlas Copco

Nowadays, a modern vacuum technology must convince users in their everyday operations with features such as sustainability, performance and ergonomics. Atlas Copco has developed its new DVS vacuum pump series with a focus on this requirement profile. The result: the DVS models are oil-free, dry rotary vane pumps that guarantee emission-free, quiet operation and do not contaminate the processes.

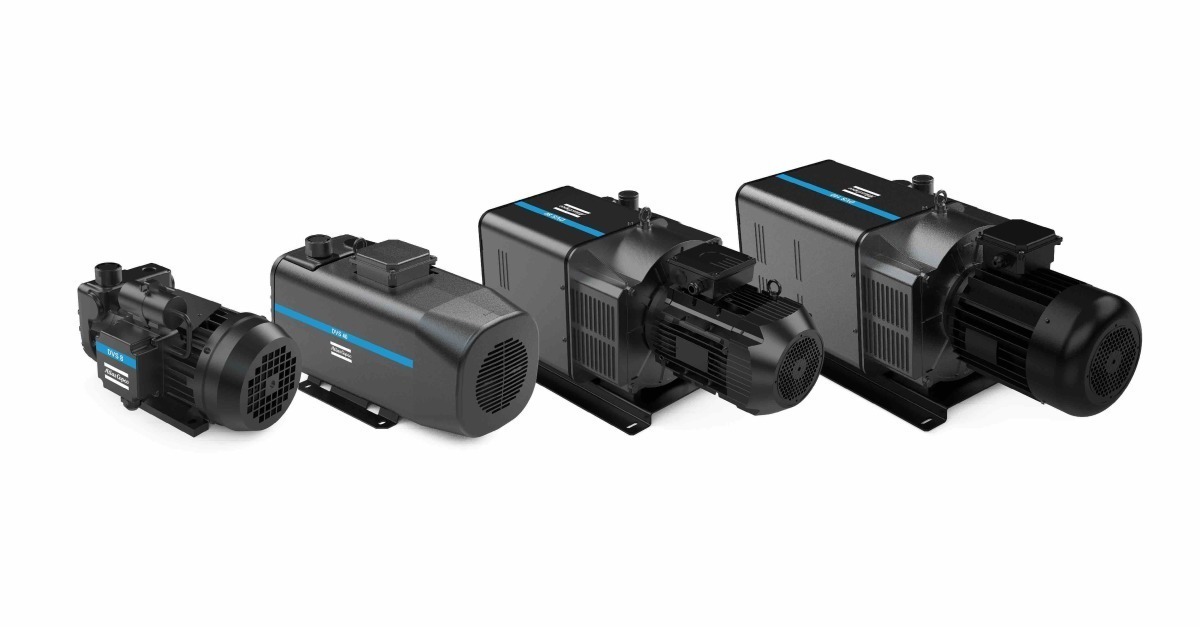

  The new dry rotary vane vacuum pumps of the DVS series from Atlas Copco
© Atlas Copco

High efficiency at competitive costs

"This makes them ideally suited for a wide range of applications, and they are used in packaging and pneumatic conveying processes, medical systems and analytical equipment, as well as in Pick and place for several automated industries" outlines Atlas Copco's product manager Carol Pignatelli. In these work processes, the dry rotary vane pumps offer their users specific advantages: The DVS models are quiet, low-wear and energy-saving and take up very little space. They are predestined for applications in which high efficiency must be achieved at competitive costs.

Proven functional principle, robust construction

This is achieved on the one hand by the proven functional principle of the rotary vane pump and on the other hand by the use of robust materials. For example, a rotor with graphite blades rotates inside the DVS pumps. The centrifugal forces press the vanes against the inside of the housing wall and hermetically seal the chamber for a safe, uninterrupted operating vacuum. "Thanks to the high-quality graphite alloy, the vacuum can be generated with minimal friction losses," explains Atlas Copco's product manager Carol Pignatelli.

The DVS models – here DVS16 – are oil-free, dry rotary vane pumps that guarantee emission-free, quiet operation and do not contaminate the processes
© Atlas Copco

The efficient pump mechanism and the design ensure minimal wear – and this in turn leads to long maintenance intervals and easy servicing of the DVS. In addition, the vacuum pumps are thus designed for maximum operating times. The temperature management also contributes to this: To reduce the temperature of the discharged air, the exhaust air is passed through an air cooler.

Interplay of proven components

The DVS series is also equipped with an inlet filter, non-return valve, exhaust silencer, a noise-containing canopy and an energy-efficient IE3 electric motor. The bottom line is that the interaction of these components forms the technological basis for a reliable pump with maximum vacuum performance and lower life cycle costs. The dry rotary vane vacuum pumps of the DVS series are available with a nominal suction volume flow of 5 m³/h to 140 m³/h and an ultimate vacuum of up to 120-150 mbar(a). "For higher flow rates, we recommend our dry claw vacuum pumps and systems of the DZS series", adds product manager Carol Pignatelli.

The dry rotary vane vacuum pumps of the DVS series are available with a nominal suction volume flow of 5 m³/h to 140 m³/h and an ultimate vacuum of up to 120-150 mbar(a) – here the DVS 100 model
© Atlas Copco

• The DVS series ensures clean, emission-free operation and no contamination of the process.
• Highly resistant graphite blades ensure durability, low wear and easy maintenance.
• Proven and reliable design principle
• DVS series is suitable for harsh industrial applications due to its low noise level and small footprint.
• Long service intervals, easy maintenance due to modular design and simple, efficient pump mechanism construction.
• Air-cooled vacuum pumps with direct drive designed for oil-free vacuum operation.

www.atlascopco.com/vacuum
