Long distances, high performance

Gearless Drives for High Capacity Belt Conveyors

Quelle/Source: ABB

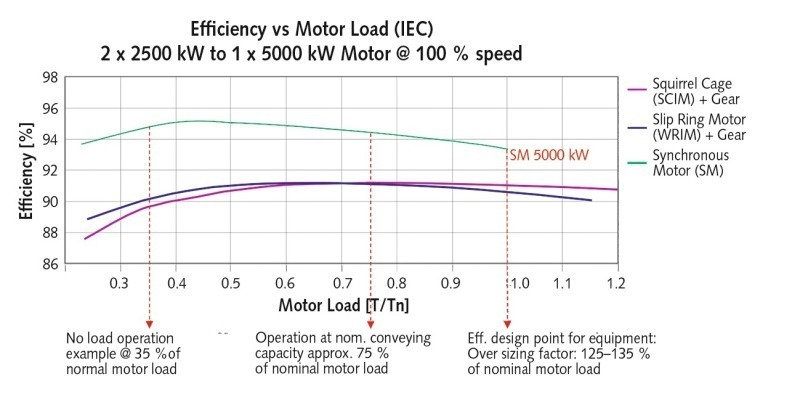

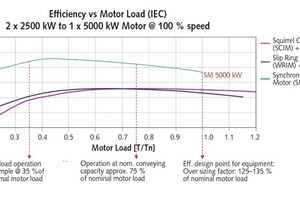

1 Motorwirkungsgrad als Funktion des Motorauslastungsgrades • Motor efficiency as function of the motor's utilization ratio

Quelle/Source: ABB

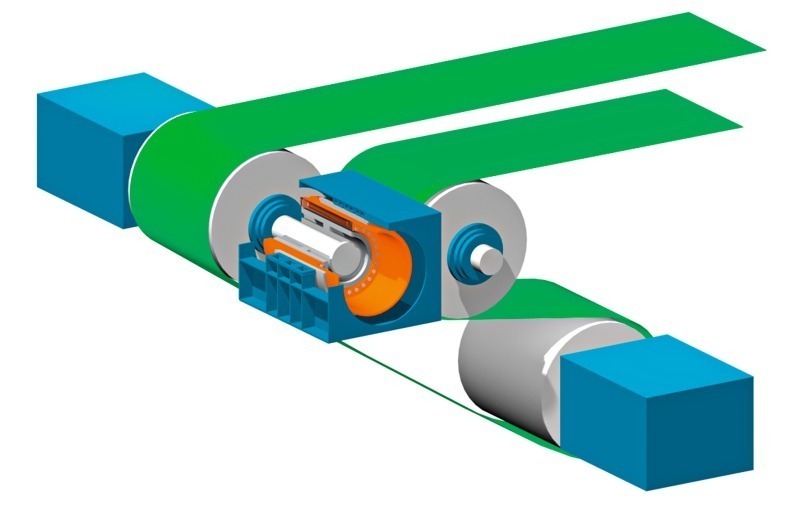

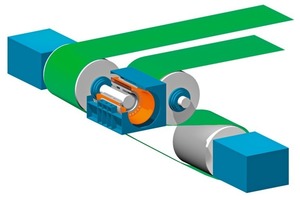

2 Grundlegender Aufbau des Antriebs • The drive system's basic structure

Quelle/Source: ABB

Quelle/Source: TAKRAF

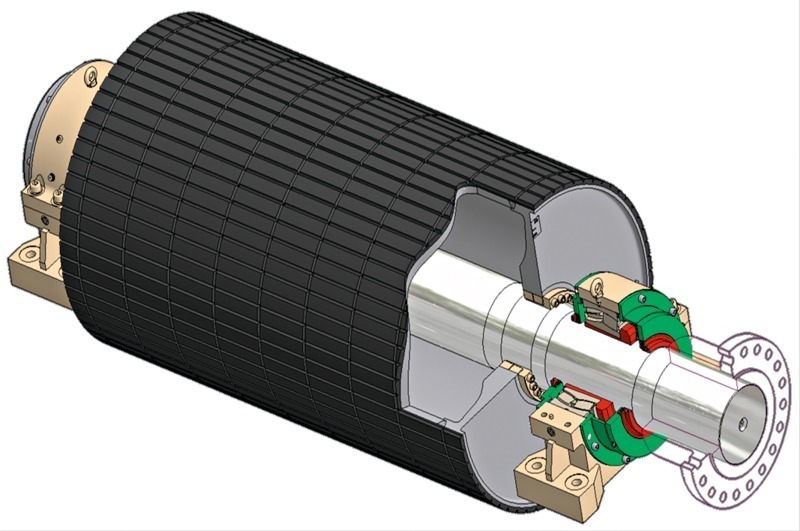

3 Antriebstrommel mit Flanschkupplung • Drive pulley with flange coupling

Quelle/Source: TAKRAF

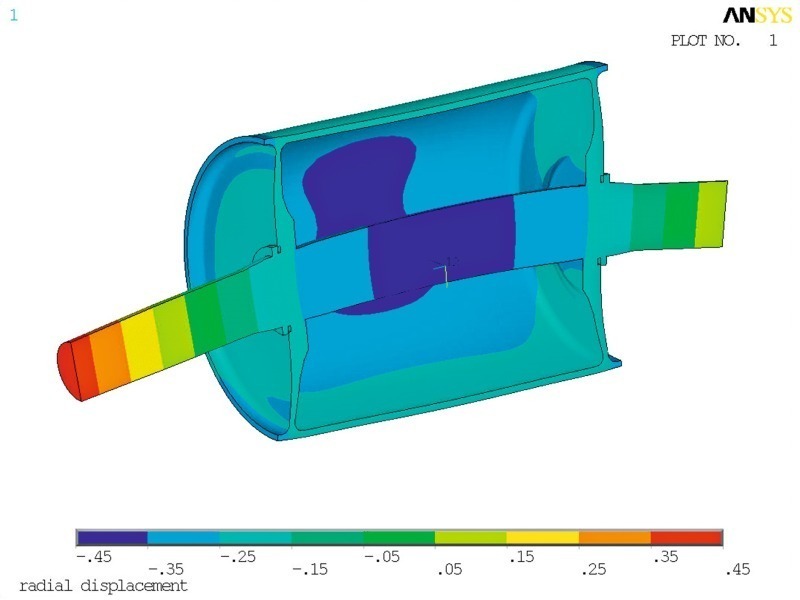

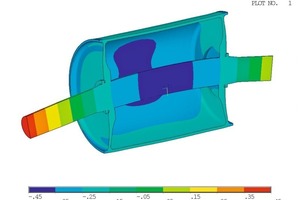

4 Verformungen an der Antriebstrommel • Deformation at the drive pulley

Quelle/Source: TAKRAF

Quelle/Source: ABB

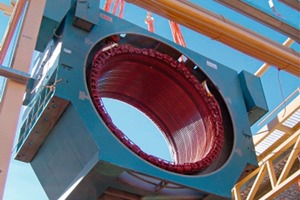

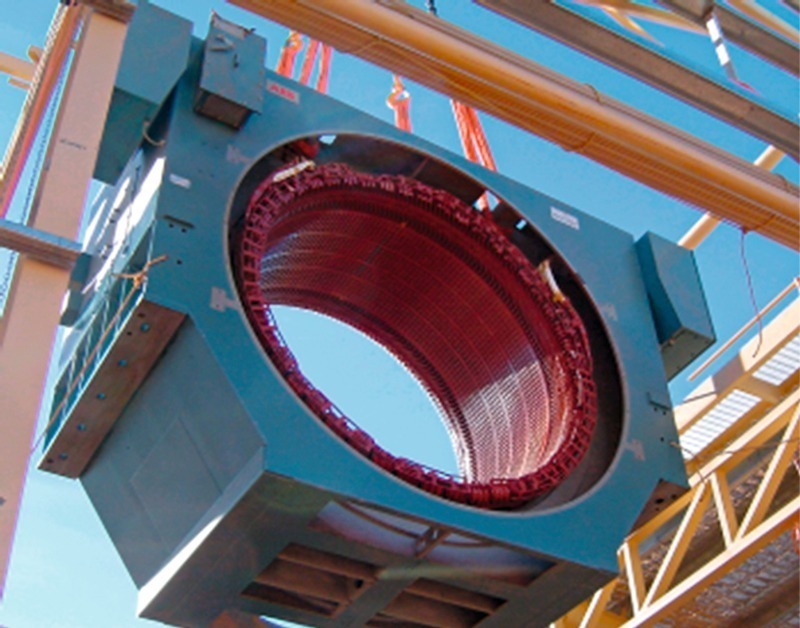

5 Stator bei der Montage • Stator during installation

Quelle/Source: ABB

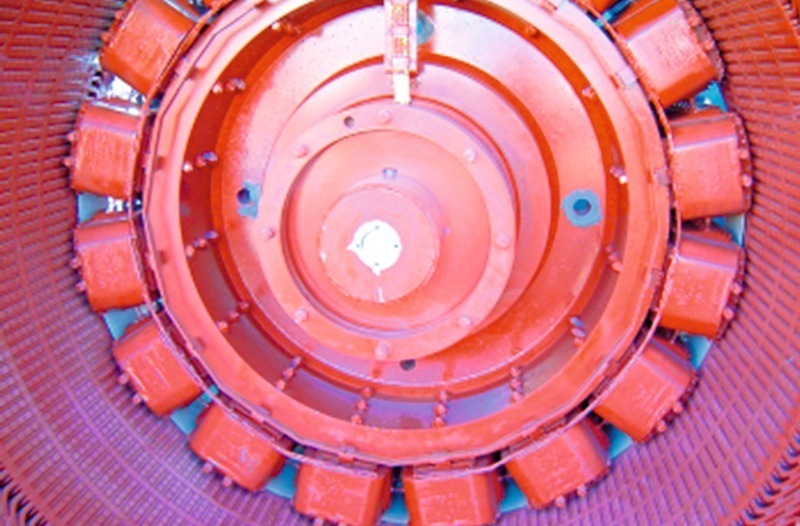

6 Rotor bei der Montage • Rotor during installation

Quelle/Source: ABB

Quelle/Source: TAKRAF

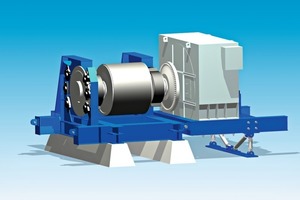

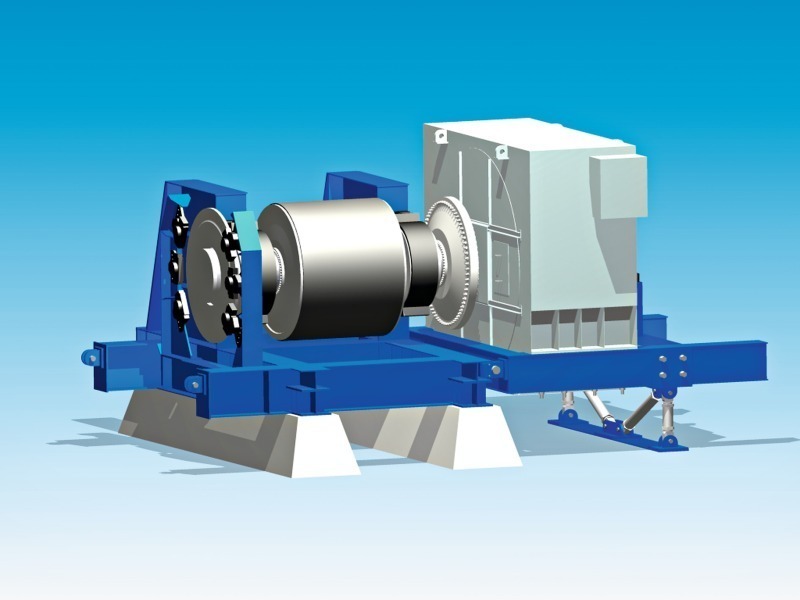

7 Lagermotor mit elastischer Kupplung, Bremsscheibe, Antriebstrommel und zum Patent angemeldeter Verlagerungskonstruktion • Bearing motor with flexible coupling, brake disc, drive pulley and the patent-pending support structure

Quelle/Source: TAKRAF

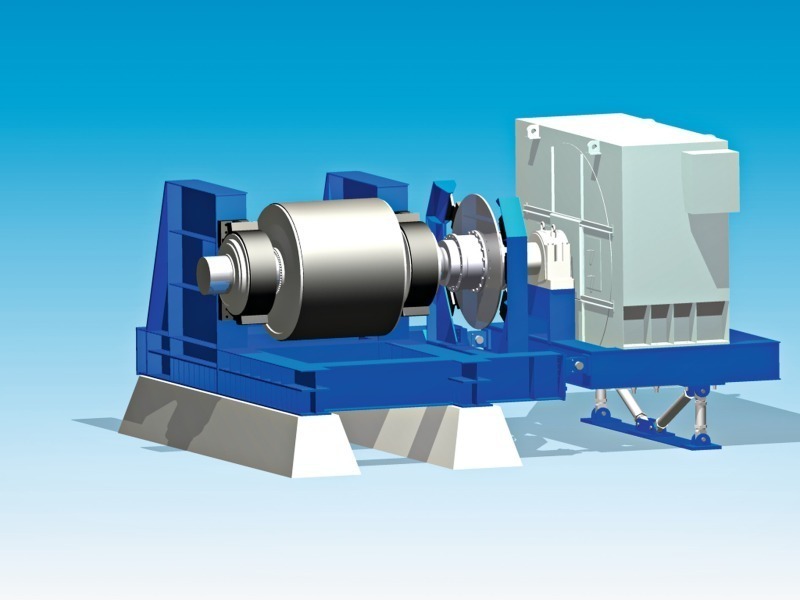

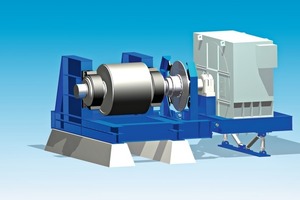

8 Motor mit Membrankupplung, Bremsscheibe, Antriebstrommel und Verlagerungskonstruktion • Bearing motor with diaphragm coupling (patent pending), brake disc, drive pulley and the patent-pending support structure

Quelle/Source: TAKRAF

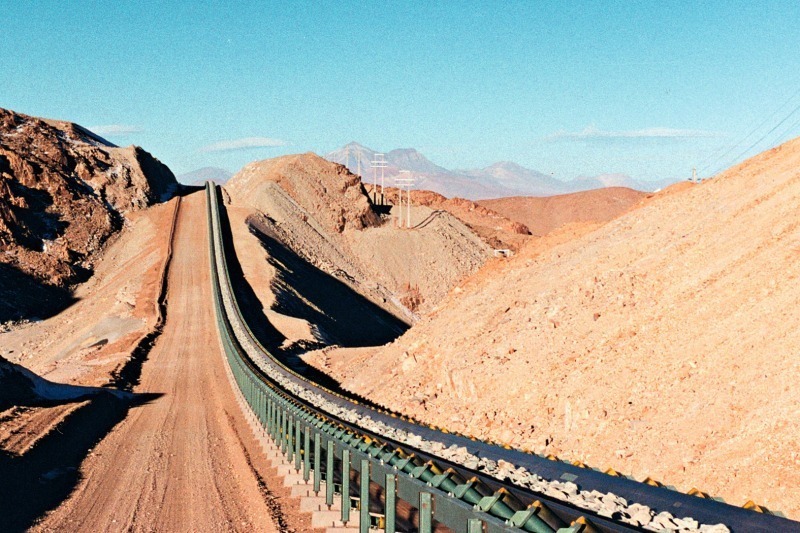

Gurtföderanlagen im Festgesteinstagebau erreichen heute enorme Längen und Fördermengen • Belt conveyors in hard rock mining operations nowadays achieve enormous lengths and outputs

Quelle/Source: TAKRAF

Summary: Belt conveyors in hard rock mining determine the development of belt conveyor components on the high end of their performance spectrum. New requirements with regard to conveyor geometries and mass flows make it necessary to think about alternative drive concepts. When it comes to drive sizes exceeding 3500 kW per individual drive, there are no conventional electromechanical drives with electric motors and helical bevel gears. Gearless drives, like those which are state of the art for the mine hoists implemented in underground mining operations, allow the use of larger drive units and are increasingly being utilized to drive belt conveyors.

Individual belt conveyors in hard rock mining operations all over the world can nowadays extend over distances of up to 16.8 km and overcome height differences of up to 500 m, while normally achieving outputs of approx. 12 000 t/h. Such belt conveyors have had a significant impact on the development of individual components. Conveyor belts with strength of up to 7800 N/mm are still in use today. Electromechanical drives, consisting of electrical motors (wound rotor or squirrel cage motor) and helical bevel gears with a capacity of up to 3150 kW, are currently in use in South American copper...
