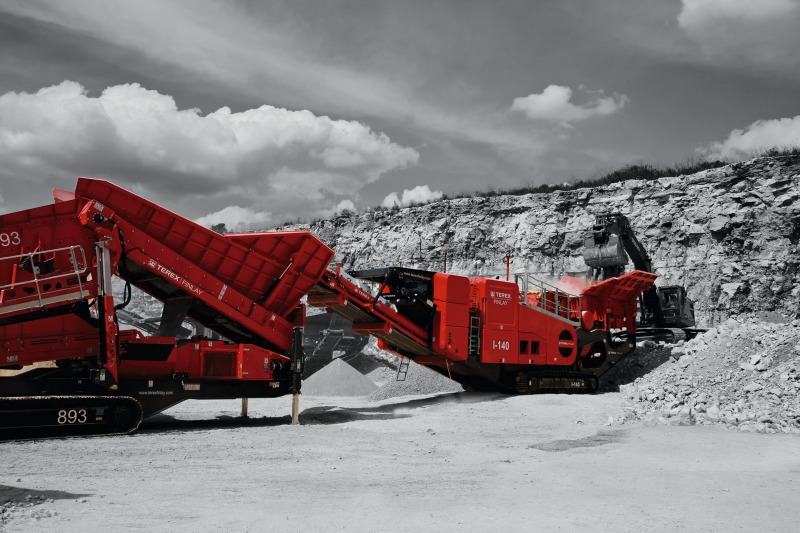

New Terex® Finlay I-140 impact crusher
The Terex® Finlay I-140 direct drive Ø 1270 mm x 1240 mm horizontal impact crusher with variable speed as well as a standard hopper capacity of 6 m³ gives operators unprecedented levels of production in both recycling, mining and quarrying applications. The robust and proven Terex® CR032 chamber gives excellent reduction ratios and high consistency of product shape.
A significant engineering approach being introduced in this model is the material flow through the plant. The flow of material has been significantly improved by increasing the width of components as the material moves through the machine. The machine features an advanced electronic control system that monitors and controls the speed of the rotor and regulates the heavy duty vibrating feeder (VGF) with integrated pre-screen to maintain a consistent feed of material into the impact chamber for optimal crushing conditions. Material from the integrated pre-screen can be diverted to a stock pile via the optional by-pass conveyor, or it may join the crushed product on the main belt.
Key Features:
The ease of material flow through the machine has greatly improved with each component of the machine increasing in width as the material moves through the machine
Fully hydraulic apron setting assist provides convenient and efficient adjustment of the aprons
Heavy duty vibrating feeder (VGF) with integrated prescreen removes dirt fines and sizes bypass material for reprocessing
Optional under crusher vibratory plate feeder with wear resistant liners aids material discharge flow
