Consistently sustainable

Keestrack K5e in Frederikshavn

Rund 10 000 t/Jahr verarbeitet die Keestrack K5e im vollelektrischen Betrieb auf dem Bauhof der Straßen- und Tiefbau-Abteilung Park og Vej der Kommune Frederikshavn # The Keestrack K5e processes around 10 000 t / year in full electric plug-in operation at the yard of the road and civil engineering department Park og Vej of the municipality of Frederikshavn

Die stationäre Stromversorgung erfolgt über einen 125 A-Anschluss am zentralen Standort im Haldenbereich # The stationary power supply is provided by a 125 A connection at the central screening location

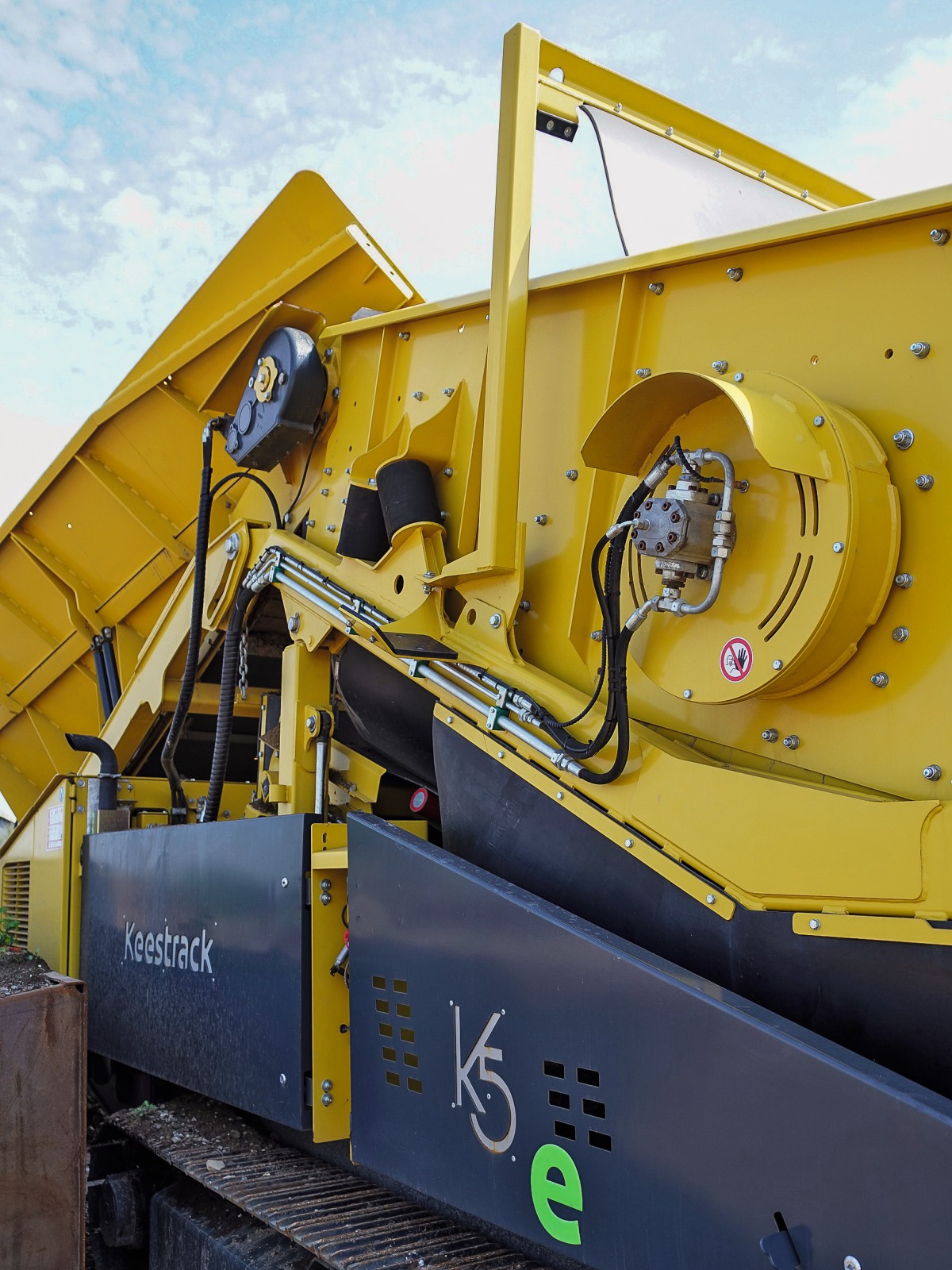

Das Schwerlast-Plattenband und der Sieberreger zählen zu den wenigen hydraulischen Verbrauchern an der Keestrack K5e # The heavy-duty apron feeder and the screen drive are among the few hydraulic consumers on the Keestrack K5e

Alle Förderbänder werden über elektrische Trommelmotoren angetrieben. Dies verkürzt die Leitungswege und senkt das Leckagerisiko im Betrieb # All conveyors are driven by maintenance-free electric drum motors. This shortens the piping lengths and reduces the risk of leakage during operation

Die Keestrack-Steuerung übernimmt das gesamte Energiemanagement und weist separat diesel-elektrische bzw. vollelektrische Betriebszeiten aus (Mitte unten „Eh“) # The Keestrack control ensures the entire energy management and displays separately diesel-electric (“Eh”) or full electric plug-in operating times ("EL")

Der Park og Vej-Technikverantwortliche Gert Christensen mit Keestrack-Händler Thomas Sørensen, TNS Imex, und Maschinist Peter Bragaard (v.l.) # Park og Vej’s Technical Manager Gert Christensen with Keestrack dealer Thomas Sørensen of TNS Imex, and machine operator Peter Bragaard (from left to right)

Last year, the civil engineering department of the Danish municipality of Frederikshavn replaced a mobile drum screen for soil processing with a Keestrack K5e diesel-electric scalper with full electric plug-in option. In addition to technical advantages, the great flexibility and the equally positive balance for the environment and operating costs made the difference.

T‌he Danish port Frederikshavn is located in the northeastern region of Nordjylland and is the administrative seat of the municipality with the same name, which extends for about 85 km along the Baltic coast to Skagen. It is the most northern municipality in Denmark where North Sea and Baltic Sea come together. The road and civil engineering department Park og Vej is responsible for the municipal traffic infrastructure – about 1000 km of roads and 300 km of unpaved roads – and is organized as a municipal company, like all other public services like the water, energy and waste sectors.

Besides the maintenance and construction of the road network, recycling of construction waste and excavation bulk is one of the tasks of the approx. 130 employees of the department. Including uncontaminated and contaminated materials from private and commercial suppliers, the annual throughput at the central recycling yard in Frederikshavn and the other collection point in Skagen reaches 15 000 to 20 000 t, according to team leader Gert Christensen, responsible for application technology and the equipment fleet at Park og Vej.

Coarse mineral construction rubble (> 20 mm) is stored temporarily at their central yard and is periodically processed by a crushing contractor. Another annual 10 000 t of soil and excavation bulk are treated using their own processing technology. Until the end of 2018, a mobile 6 x 2 m drum screen has been in use, but did not sufficiently meet important requirements: “Particularly in the processing of soil containing large amounts of grass and roots, where we have to segregate vegetation as good as possible from soil residues before composting, the efficiency of our drum screen was too low,” explains Gert Christensen the change to horizontal screening technology.

“Green aspects” also influenced the decision to choose the Keestrack K5e mobile scalper. “The municipality of Frederikshavn is committed to protect the environment. When investing in new plants or equipment, we must therefore primarily assess the environmental impact and review the energy efficiency in addition to the technical requirements.” According to Gert Christensen, Park og Vej opted almost immediate for an electric drive concept, but did not want to renounce the flexibility of a mobile plant so the equipment would still be versatile to work on their central yard, the decentral depots or on-site on large construction sites.

“We tested a wide range of offers on the market – the diesel-electric full hybrid plug-in concept from Keestrack seemed to us the most mature. Here, not just an additional engine was built on, but the whole process has been electrified very thoughtfully. In full electric operation, all system functions are available without any performance or functional limitations. In conventional diesel-powered operation, we benefit from the independence of the track-mounted screen with significantly lower fuel consumption and emissions.”

Flexible electric solutions

With a weight of around 30 t, the K5/K5e series represents the “mid-range” of Keestrack’s scalper programme, consisting of 6 models. An extensive choice of screen media for the 5000 x 1500 mm double-deck screen box (effective screen area 7.5/6.75 m²) and the hydraulic adjustable screen angle, guarantee a wide range of applications – from highly efficient rock scalping to soil processing with a capacity up to 450 t/h, from screening construction waste to the production of marketable end products in three fractions. Like all Keestrack scalpers, the K5 series is optimized for transport: all conveyors and other components can be hydraulically folded for low-bed transport (transport width 2600 mm) – on site, the unit without support legs is quickly operational.

This also applies to the full hybrid plug-in version Keestrack K5e. Less than 1000 kg extra weight compared to the diesel-hydraulic model guarantees no restrictions in transport practice. At the heart of the K5e is the onboard 105 kVA generator, which is connected to the diesel engine and directly supplies all electrical consumers (drum motors, ancillaries, lighting, etc.). All hydraulic components (plate apron feeder, screen drive, lifting cylinders and track drive) are powered by a central 45 kW unit consisting of electric motor and load-sensing hydraulics.

The diesel-electric drive concept reduces peak loads, which are typically encountered by diesel-hydraulic systems, and contributes largely to low fuel consumption in diesel operation (Ø: 7 – 9 l/h). This efficiency can be further increased by connecting downstream equipment via the external “plug-out” connection of the K5e – for example the new fully automatic stacker S1e, the dust-suppression technology within the Keestrack program or a high-performance lighting system.

Another positive asset of the highly electrified technology on board of the K5e is the significant reduction of piping and oil volumes of the onboard hydraulics. Approximately 40 % shorter piping with considerable less wear-intensive connections in bending areas (esp. on conveyors) and a significantly smaller oil volume of 235 l compared to the purely hydraulic version K5 (370 l), resulting in reduced operating and maintenance costs and lower environmental risks.

Connecting the Keestrack K5e to existing electric mains, a stand-alone generator or the sufficiently strong plug-out connection of an upstream crusher (connection values: 125 A, 400 V, 50 Hz) is very simple: once the plant has been roughly positioned, the on-board Diesel can be switched off. After attaching the 3-phase plug connection, the Keestrack control system handles the entire energy management. Even without starting the diesel engine, it is still possible to reposition the screener via the track drive or use the hydraulic cylinders of the conveyor belts.

Convincing in practice

In December 2018, the Danish Keestrack dealer TNS Imex from Løgumkloster delivered the K5e to Frederikshavn. Until the installation of the power supply at the central screening station on the Park og Vej’s yard, the K5e was operating diesel-powered - since May of last year purely electric. In normal operation, the plant is equipped with 45-mm finger screen in the upper deck and 20-mm square mesh below - for particularly difficult materials to screen, such as the heavily polluted sand of urban sweepers (about 360 t per year), operators change to 40 x 40-mm-mesh below.

The K5e reaches up to 100 t/h in the typical soil processing in Frederikshavn. This value varies depending on the material and in particular on the availability of the 4.5-m³ wheel loader which is also used for truck loading. Even in this case, the plug-in electric operation pays off: no diesel fuel consumption during idling and no maintenance-related operating hours – once the “stand-by” is being set by wheel loader driver Peter Bragaard via the radio remote control, the equipment is back in operation speed in no time.

Technical manager Gert Christensen has medium-term consumption evaluations available. As an average fuel consumption in diesel-electric operation, he reports 6.61 l/h – an average of 23,15 kWh per electric plug-in operating hour, which is documented separately through the controller and optionally through the satellite-based remote monitoring telematics system Keestrack-er. Based on the local fuel and electricity prices, the energy cost savings in Frederikshavn already reach 27 % – even without the public subsidy granted in Denmark for environmental friendly production processes.
