KLEEMANN - three premieres at the Intermat

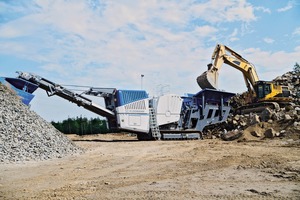

Robust jaw crusher MC 120 Z PRO for quarries
With the mobile jaw crusher MOBICAT MC 120 Z PRO Kleemann showcases its latest development for use in quarries. The robust and high-performance plant achieves an hourly output of up to 650 tonnes thanks to the powerful jaw crusher. The Continuous Feed System (CFS) guarantees the best possible crusher feed. It regulates the material feed depending on the material flow. At the same time it is very economical with its diesel-electric drive and can also be operated with an optional external power supply. To achieve effective prescreening of fines, the MC 120 Z PRO is equipped with an integrated double-deck prescreen with an extra large screening area.

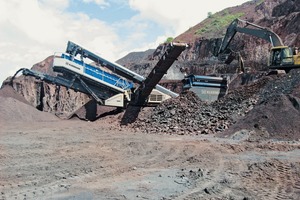

Extremely versatile classifying screen MS 952 EVO
The plants in the EVO series are characterised by compact dimensions, good transportability and flexibility. This includes the new mobile screening plants of the MOBISCREEN EVO series. The exhibited double-deck classifying screen MS 952 EVO is suitable for natural stone and recycling application in changing locations. The plant is very efficient and can process up to 500 tons of material an hour on a screening area of approx. 9.5 m² in the upper deck. As with all EVO plants from Kleemann, all components are easily accessible for convenient maintenance. The screen media change in the lower deck, for example, is comparatively simple due to the lowerable fine grain discharge conveyor.

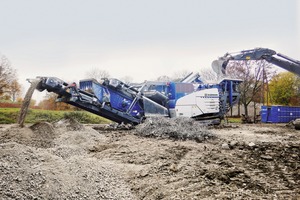

Flexible impact crusher MOBIREX MR 110 Z EVO2
The mobile impact crusher MOBIREX MR 110 Z EVO2 is designed both for recycling and natural stone processing. The material is prescreened and levelled with the double-deck prescreen. Thanks to the well thought-out material flow concept, the plant achieves an output of up to 350 t/h. The optional secondary screening unit has a very large screening area for a thoroughly classified final product. MOBIREX plants are equipped with the Lock & Turn system, which guarantees safe maintenance. Access to the plant is only possible via a multi-stage safety system and the rotor can be locked in any position to change the rotor ledges.

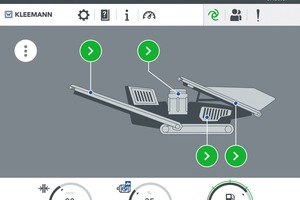

Simple control with SPECTIVE
With SPECTIVE, Kleemann introduces its new, intuitively operated control concept that supports users with their work. This is achieved by the use of clear symbols that make all plant functions identifiable at a glance. The 12-inch touch panel only displays information that is relevant to machine operation. The operator is guided through the control system in a similar manner to a smart phone, which considerably reduces the number of operating errors. In addition, data on machine operation can be called up in the plant cockpit. SPECTIVE will be initially available for the crushing plants in the PRO series and the latest impact crusher in the MOBIREX MR EVO2 series.
Hall 5A, Stand K 180
