Adaptable

The AKOREL free-fall sand classifier – flexible grading-curve adjustment for varying raw sand qualities and product specifications

Source/Quelle: AKW Apparate + Verfahren GmbH

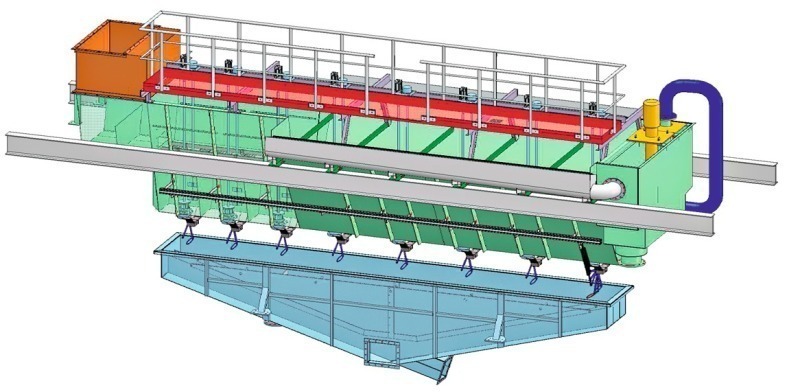

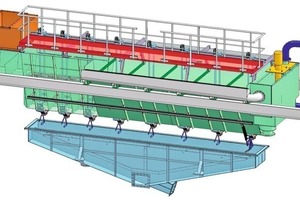

1 3-D Darstellung eines AKOREL-Freifallklassierers mit Einlaufkasten und Aufstromkammern (links), Klassier- Austragskammernkammer (Mitte), Klassierüberlauf mit interner Kreislaufwasserpumpe (rechts) und Produktsammelrinnen (unten) ● 3D view of an AKOREL free-fall classifier, showing the feed box and upflow chambers (left), classifying extraction chamber (centre), classifier oversize flow with internal water-circulation pump (right), and product collection troughs (bottom)

Source/Quelle: AKW Apparate + Verfahren GmbH

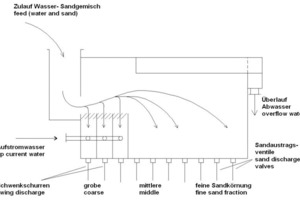

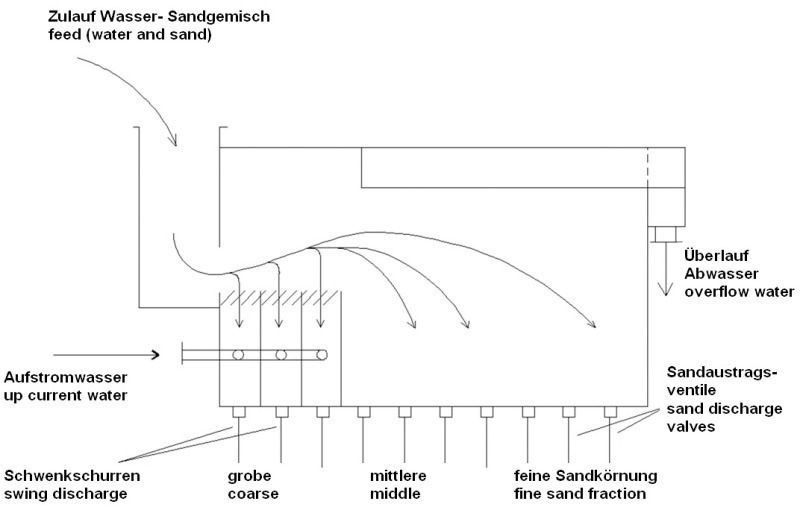

2 Funktionsprinzip AKOREL-Freifallklassierers ● The functional principle of the AKOREL free-fall classifier

Source/Quelle: AKW Apparate + Verfahren GmbH

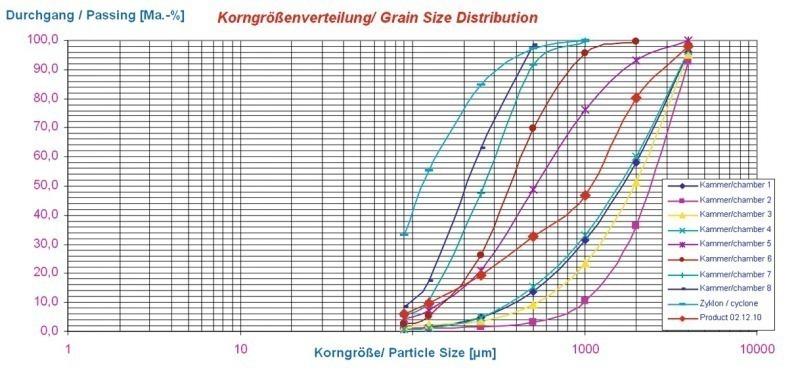

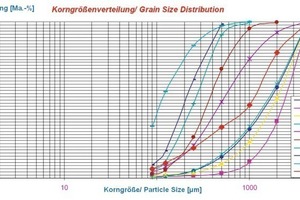

3 Bei Inbetriebnahme ermittelte Korngrößenverteilung der einzelnen Kammern 1 – 8, der Feinsandrückgewinnung und vom Produkt als Basisdaten aller Berechnungen.● Particle-size distribution determined at start-up for individual Chambers 1 to 8, fine-sand recovery and the product, as the base data for all computation.

Source/Quelle: AKW Apparate + Verfahren GmbH

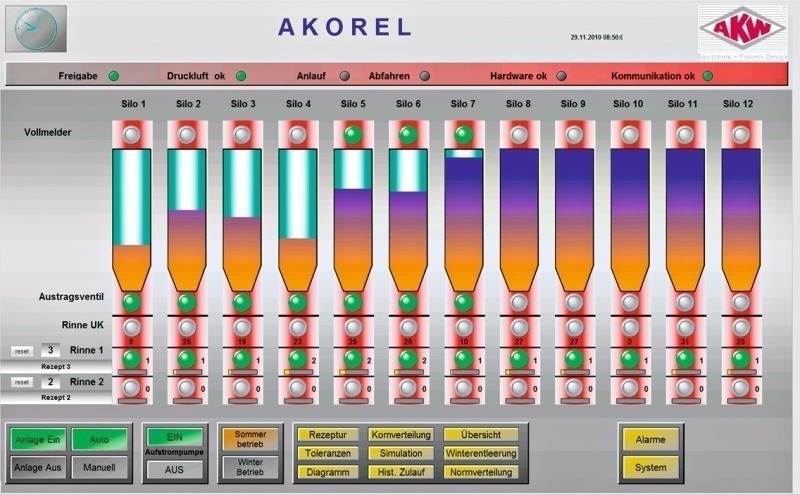

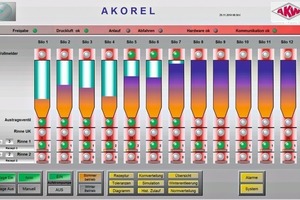

4 Beispiel Übersichtsschaubild AKOREL ● Example of the AKOREL overview display

Source/Quelle: AKW Apparate + Verfahren GmbH

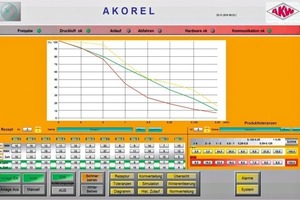

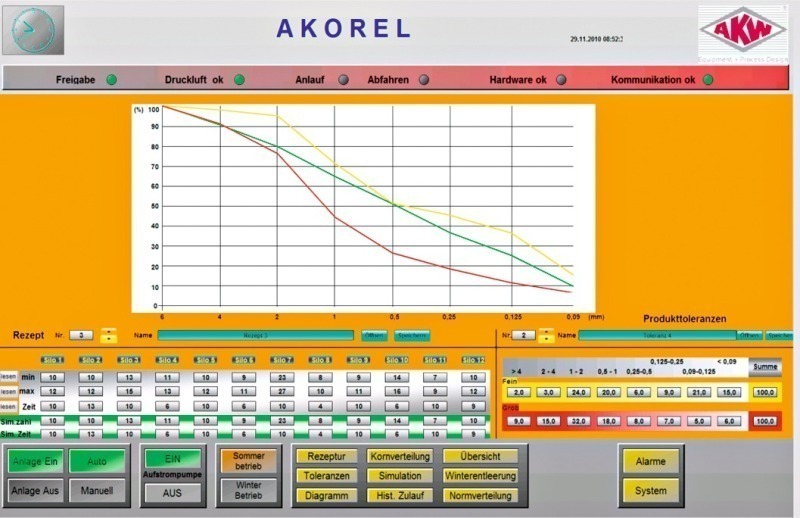

5 Visualisierung Rezeptsimulation/Produkttoleranz mit grafischer Darstellung der Sieblinie (gewähltes Rezept, Austragsimpulse, zulässiges Min. / Max. - Produkttoleranz) ● Visual display of Formulation Simulation/Product Tolerance, showing graphical view of the grading curve (selected formulation, extraction pulses, permissible min./max. product tolerance)

Source/Quelle: AKW Apparate + Verfahren GmbH

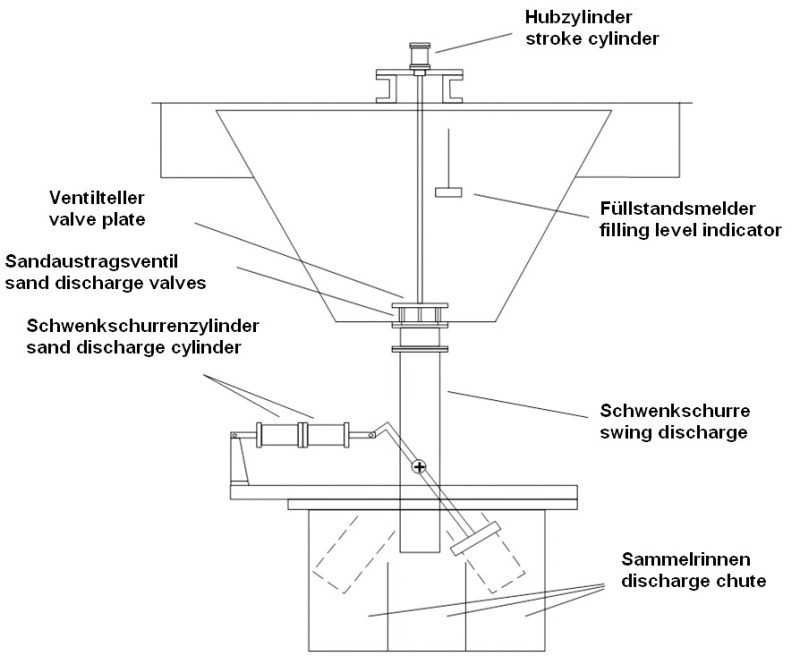

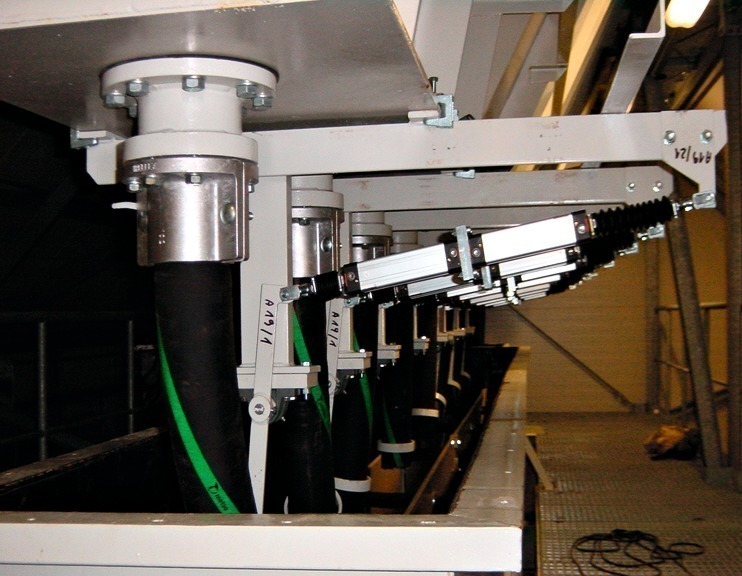

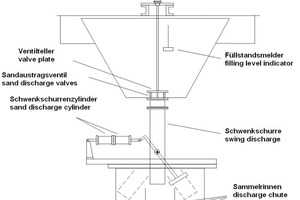

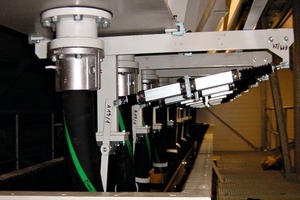

6 Schematische Darstellung einer Kammer mit Schwenkmechanismus in 3 Produktrinnen (Sand I, II und UK) ● Schematic view of a chamber with a pivot mechanism discharging into three product troughs (Sand I, Sand II and US)

Source/Quelle: AKW Apparate + Verfahren GmbH

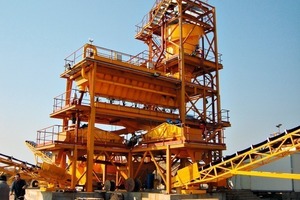

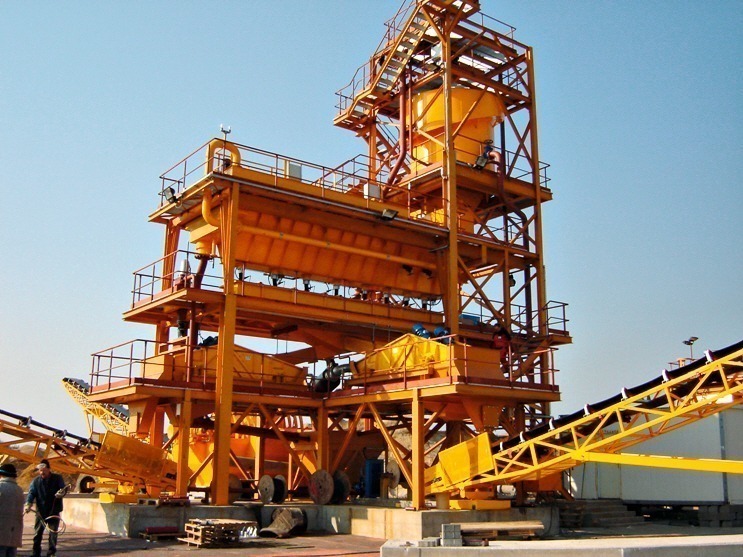

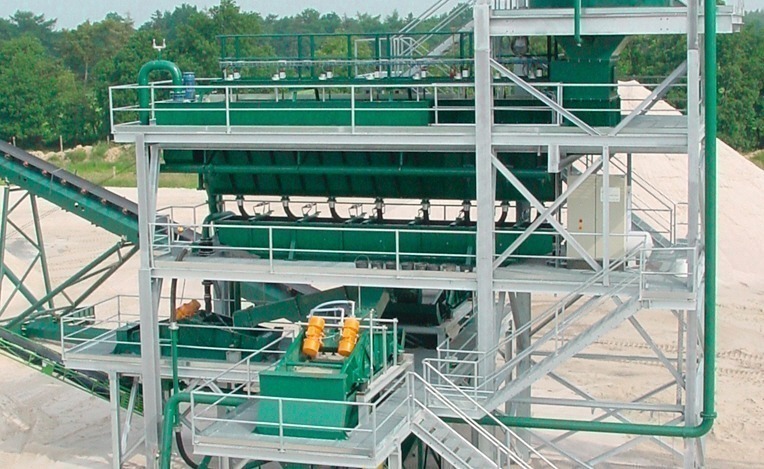

Komplette Sandaufbereitungsanlage in Polen mit TAS (zur Entkohlung), Akorel, Entwässerungssieben und Haldenbändern (von oben nach unten) ● Complete sand preparation installation in Poland, featuring TAS (for coal removal); AKOREL, dewatering screens and stacker belts (from top to bottom)

Source/Quelle: AKW Apparate + Verfahren GmbH

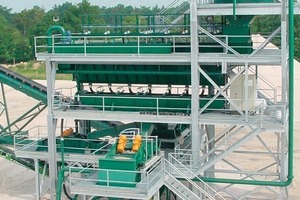

Sandaufbereitungsanlage • Sand preparation installation

Source/Quelle: AKW Apparate + Verfahren GmbH

Summary

Flexible reaction to fluctuating deposit qualities and changing customer requirements is possible, either manually or automatically, and without difficulty, using tried and proven AKOREL classifying systems, with extensive data acquisition and evaluation of operating parameters by means of a large number of “program adjustment screws”. Either one or two controlled sands can be produced.

1 Use of the AKOREL free-fall classifier

AKW Apparate + Verfahren GmbH has for many years supplied to customers around the world a wet-classifying machine which produces high-quality building sands in the 0 to 2 (4) mm range to defined grading-curve specifications highly cost-efficiently and at high throughputs (around 80 to 600 t/h, depending on machine size), in the form of the AKOREL free-fall classifier (Fig. 1). The aim at all times is the removal of only a minimum of oversize particles as “uncontrolled product”. In addition to the target of providing the customer with a robust, dependable...
