Doosan Infracore Europe S.A.

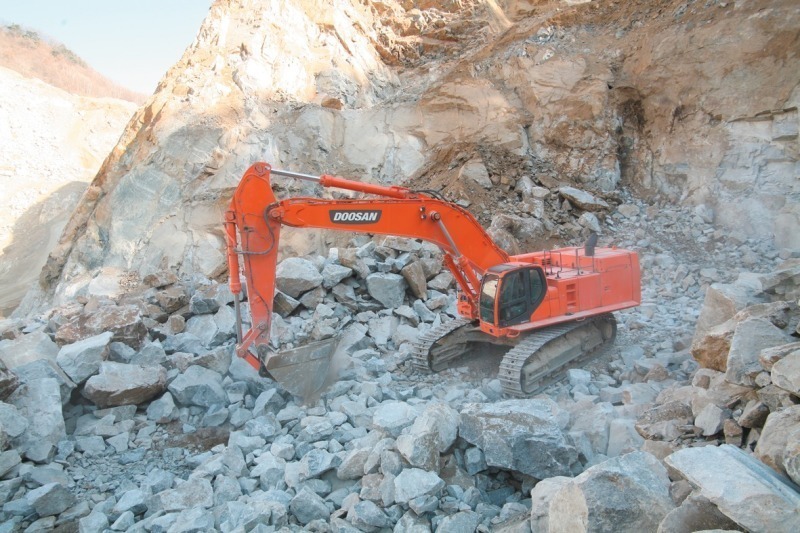

The new DX700LC, which is the largest in the range of Doosan crawler excavators, is designed and built to meet the needs of heavy duty mining and quarrying applications as well as major infrastructure construction projects. To meet the requirements of different markets, three arms of varying length are available for the DX700LC. Equipped with the EU-approved 2900 mm arm, the DX700LC offers a maximum digging depth of 7765 mm, a maximum digging height of 12,080 mm, a maximum digging reach of 12,715 mm and a dump height of 8180 mm. The minimum swing radius is 4090 mm. Digging force over the bucket is 33.3 tonne, while that over the arm is 27.0 tonne. The power boost feature increases both forces by about 9 %. Thanks to high swing torque (21,940 kgf.m), the DX700LC can work efficiently on slopes. Maximum swing speed is 7.1 RPM.
Open Air F6, Stand 601/602/3, www.doosan.com
